Innovations in Medical Power Supply Solutions
#

Introduction
#

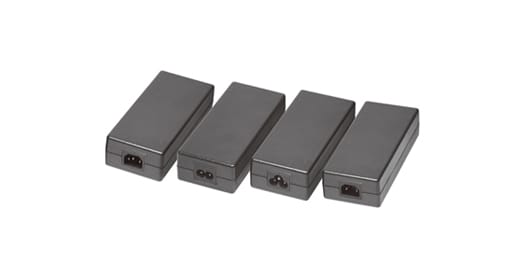

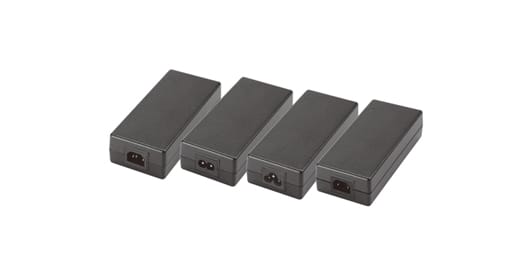

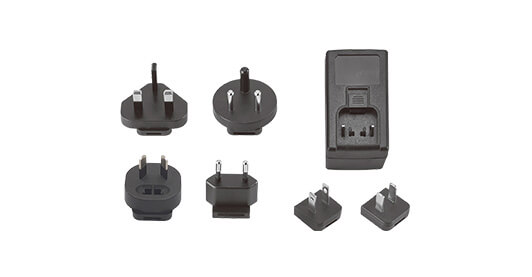

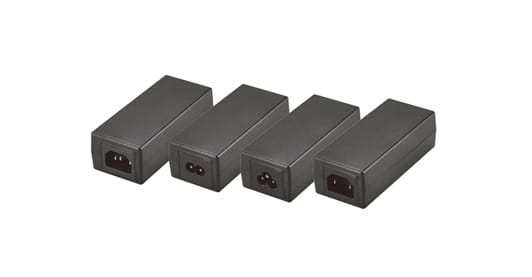

With over 25 years of experience in the medical sector, EDAC POWER delivers a comprehensive range of AC-DC switching medical power supplies, available in both external and open-frame configurations. These solutions are engineered to support power outputs from 4.5 to 550 Watts for external models, and 30 to 500 Watts for open-frame models, with a variety of form factors including 2.5"x1.5", 2”x3”, 2”x4”, and 3”x5” to suit different application needs.

Isolation technology is integrated into every design, ensuring low leakage current and robust protection for medical and healthcare equipment.

Advancements with GaN Technology
#

Gallium Nitride (GaN) is a wide-bandgap semiconductor that offers efficient, compact, and reliable solutions across ICT, medical, and industrial fields. Thanks to its unique crystalline structure, GaN outperforms traditional silicon MOSFETs with higher electron mobility and superior thermal conductivity. This enables the creation of smaller, more efficient, and energy-saving power supplies.

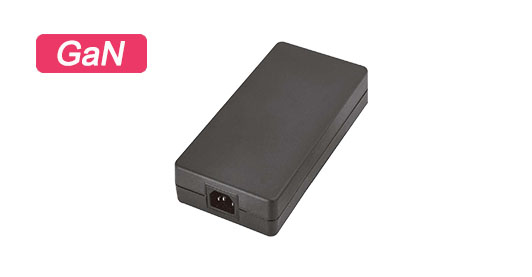

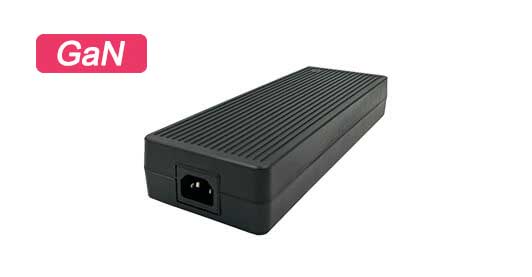

EDAC POWER introduces GaN-based medical power solutions ranging from 48W to 550W.

Key Advantages
#

Higher Efficiency: GaN devices deliver greater power conversion efficiency due to lower resistance and faster switching speeds, resulting in reduced power loss, less heat generation, and improved overall system performance.
Compact Size: The adoption of GaN technology allows for smaller and lighter power supplies without sacrificing output, achieving higher power density.
Enhanced Reliability: Superior thermal management enables operation at higher temperatures, increasing the reliability and lifespan of power supply solutions.

Safety and Compliance
#

All medical power supplies from EDAC POWER meet 2xMOPP requirements and comply with major international safety standards, including:

ANSI/AAMI ES60601-1
CAN/CSA-C22.2 No. 60601-1
TUV EN 60601-1
CB IEC 60601-1
CE EMC (EN 60601-1-2)
FCC Part 15B

Application Areas
#

With universal input (100 to 240Vac) and full power coverage from 4.5 to 550 Watts, EDAC POWER’s medical power supplies are successfully integrated into a wide range of medical equipment, such as:
